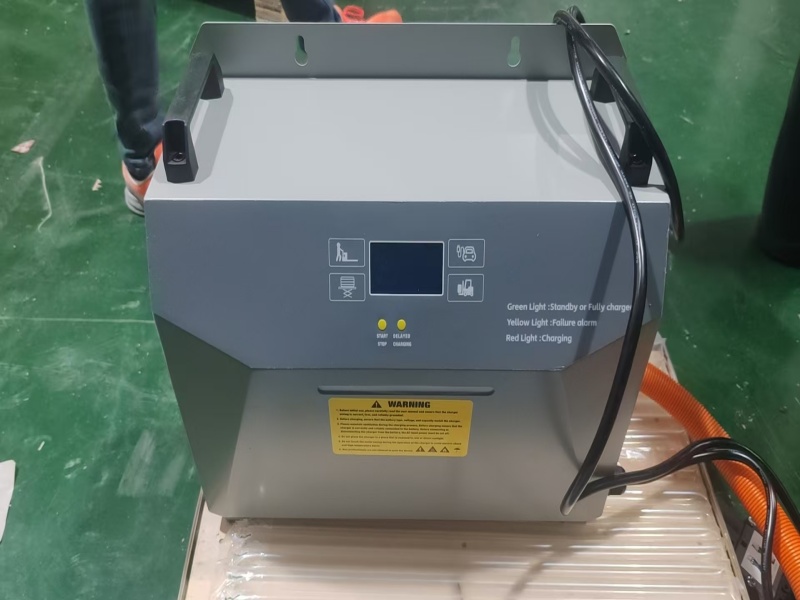

Forklift Battery Charger 48V 100A
1.Product Series Overview
This compact fixed charger boasts high conversion efficiency andsupports global three-phase input voltages. Featuring a button/touchdisplay screen, it allows users to monitor charging voltage and current inreal time. The device includes power loss compensation functionality andfault indicators for clear status visibility. Equipped with a forced aircooling system, it offers comprehensive protection including input/outputover/under voltage protection, overcurrent protection, output short-circuitprotection, and fan failure safeguards.
|
|
48V100A |
48V200A |
|
额定输入电压 Rated input voltage |
Three-phase 220V /380V /400V /480VAC |
Three-phase 220V /380V /400V /480VAC |
|
额定输入频率 Rated input frequency |
45-65Hz |
45-65Hz |
|
输入电流(最大) Maximum input current |
<16A |
<40A |
|
最大转换效率 Maximum conversion efficiency |
≥94% |
≥94% |
|
额定输出电压 Rated output voltage |
48V |
48V |
|
额定输出电流 Rated output current |
100A |
200A |
|
通讯 Communication |
CAN |
CAN |
|
Efficiency |
≥92% |
≥92% |
|
冷却方式 Cooling-down method |
强制风冷 Airblast cooling |
|
|
环境温度 Ambient temperatur |
-20℃~50℃正常工作;>50℃功率降低 Normal operation at-20°c to 50°c;power reduction at temperatures above 50°c |
|
|
环境湿度 Ambient humidity |
10%-90%rh 不凝结 Non-condensableat 10%-90%rh |
|
|
防护等级 Levels ofprotection |
IP 20 |
|
|
噪音 Noise |
≤55dB
|
|
|
Altitude |
below 2000m |
|
